Central Air Conditioning and Ductwork

Central air-conditioning services covering duct design, fabrication and installation, copper piping and insulation for residential, commercial and industrial projects.

ServicesFill in the request form
ShareWhatsAppXLinkedIn

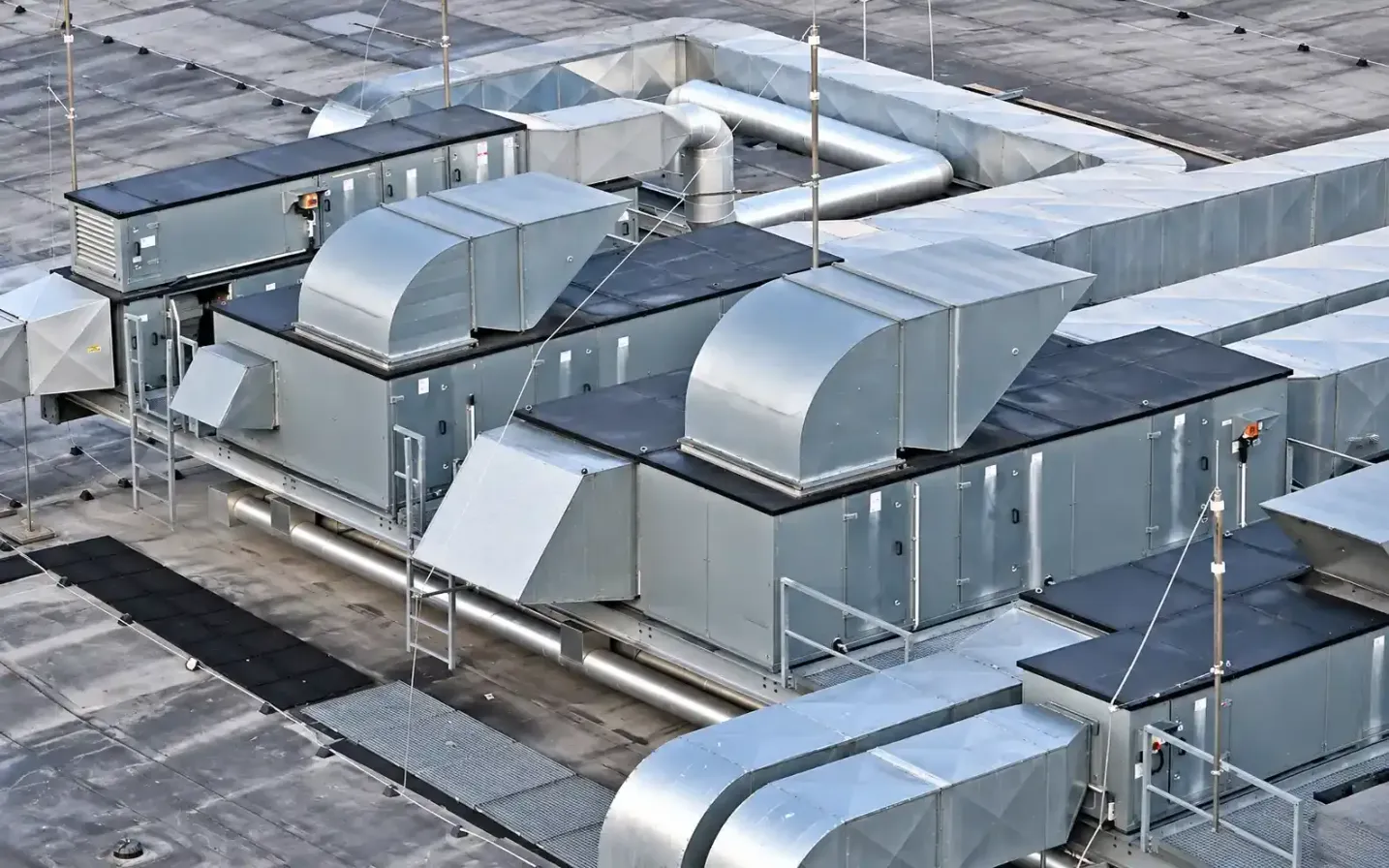

Rooftop central air-conditioning systems
Central air-conditioning units and ductwork on a project
1 / 4

SWEST provides central air-conditioning services from design and fabrication through installation, including ductwork, insulation, copper piping and associated connections. Duct fabrication is based on SMACNA standards, using galvanised sheet metal selected for the engineering drawings and duct dimensions. The work includes internal and external insulation and joint sealing to help limit air and energy losses. Copper piping installation uses Muller piping and suitable AeroFlex insulation as specified for the project.

01Central air-conditioning duct design and fabrication

Ductwork fabricated to the engineering drawings

We design and fabricate ductwork to the project drawings and dimensions, using galvanised sheet metal with thicknesses selected for the duct size and installation requirements. Joints, reinforcement and supports are specified to provide durability, help limit vibration and support the air-distribution network. Catalogue references include galvanised rectangular ductwork and circular spiral ductwork.

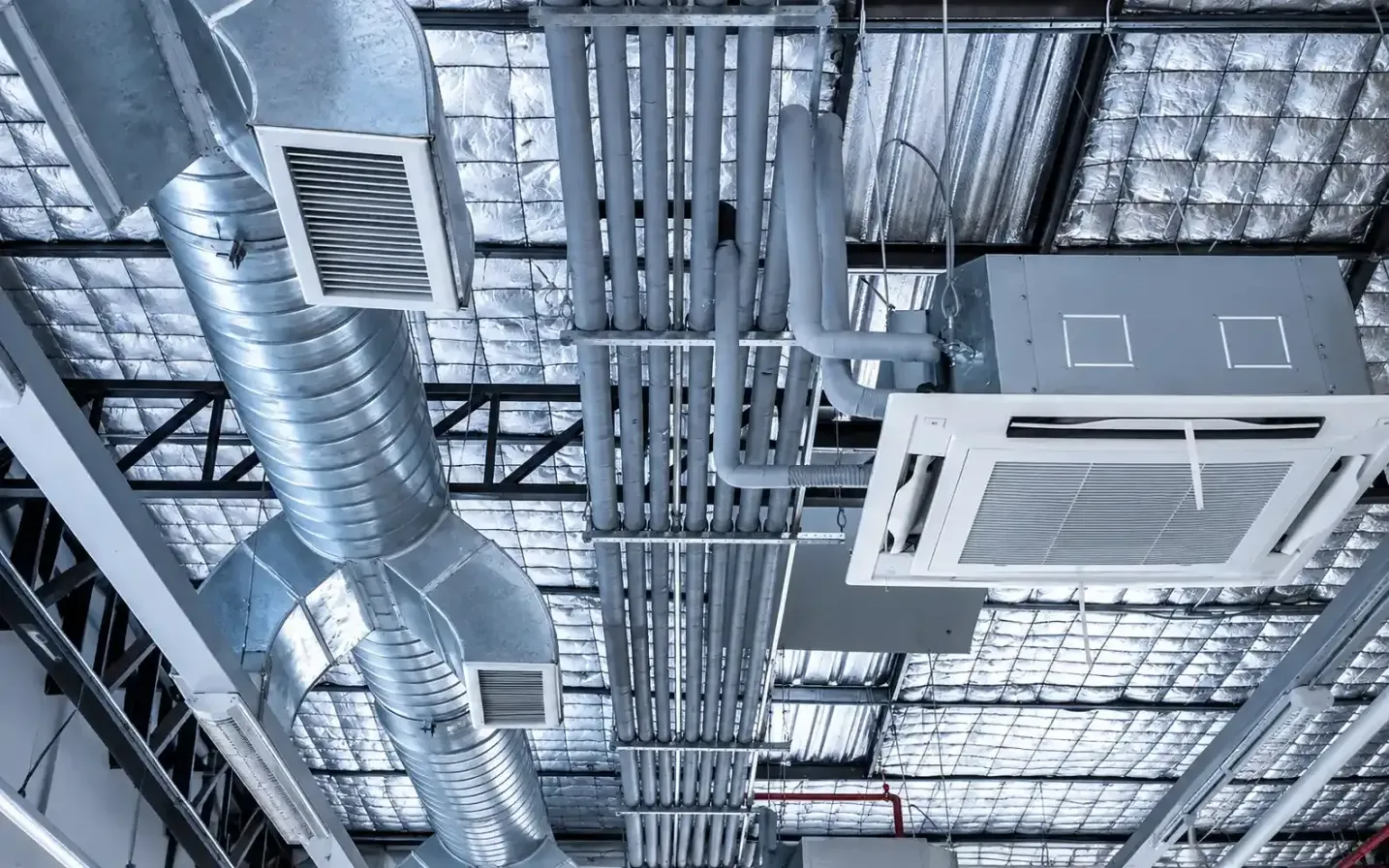

Air duct installation for central air conditioning

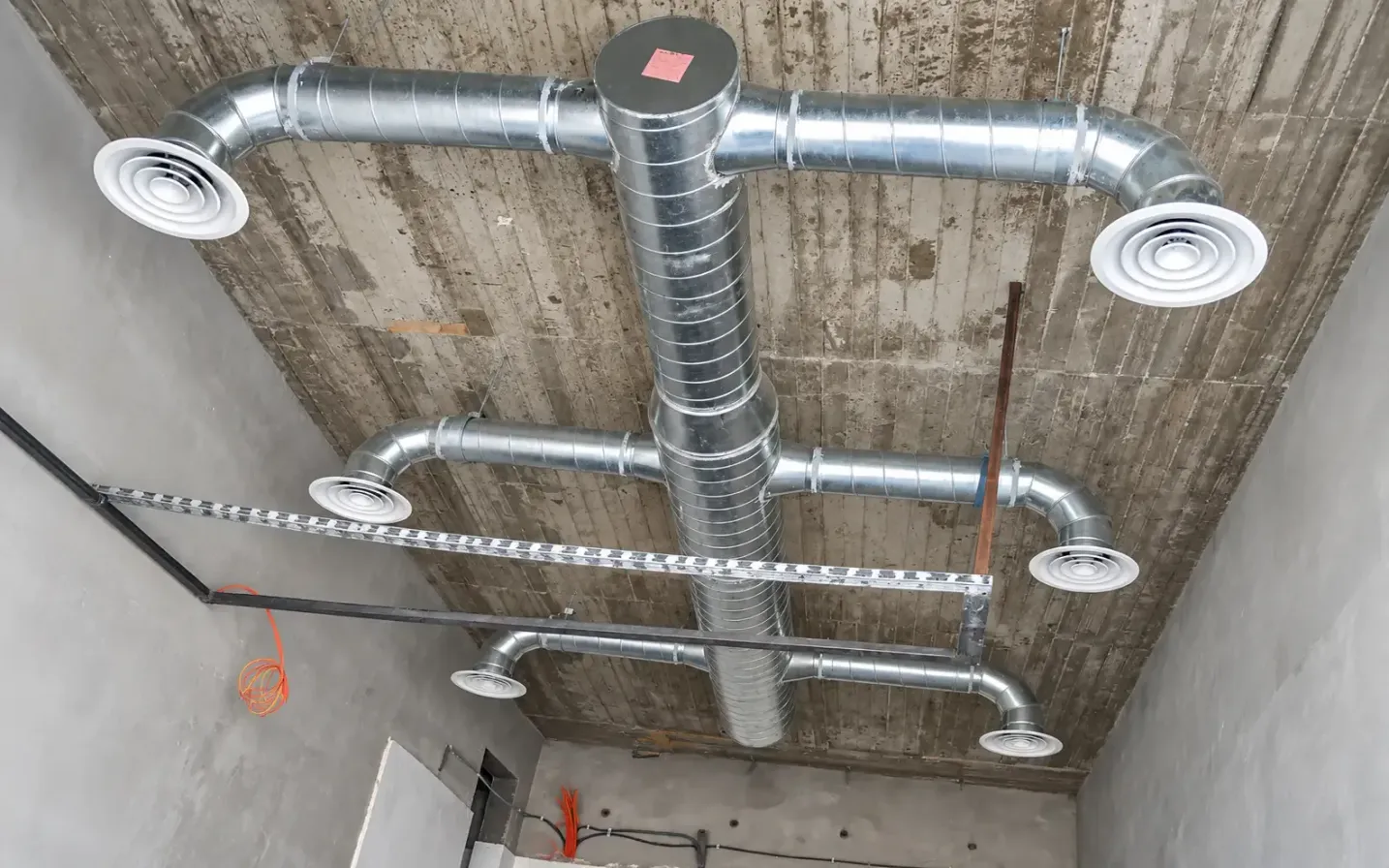

Air duct installation for a central air-conditioning system

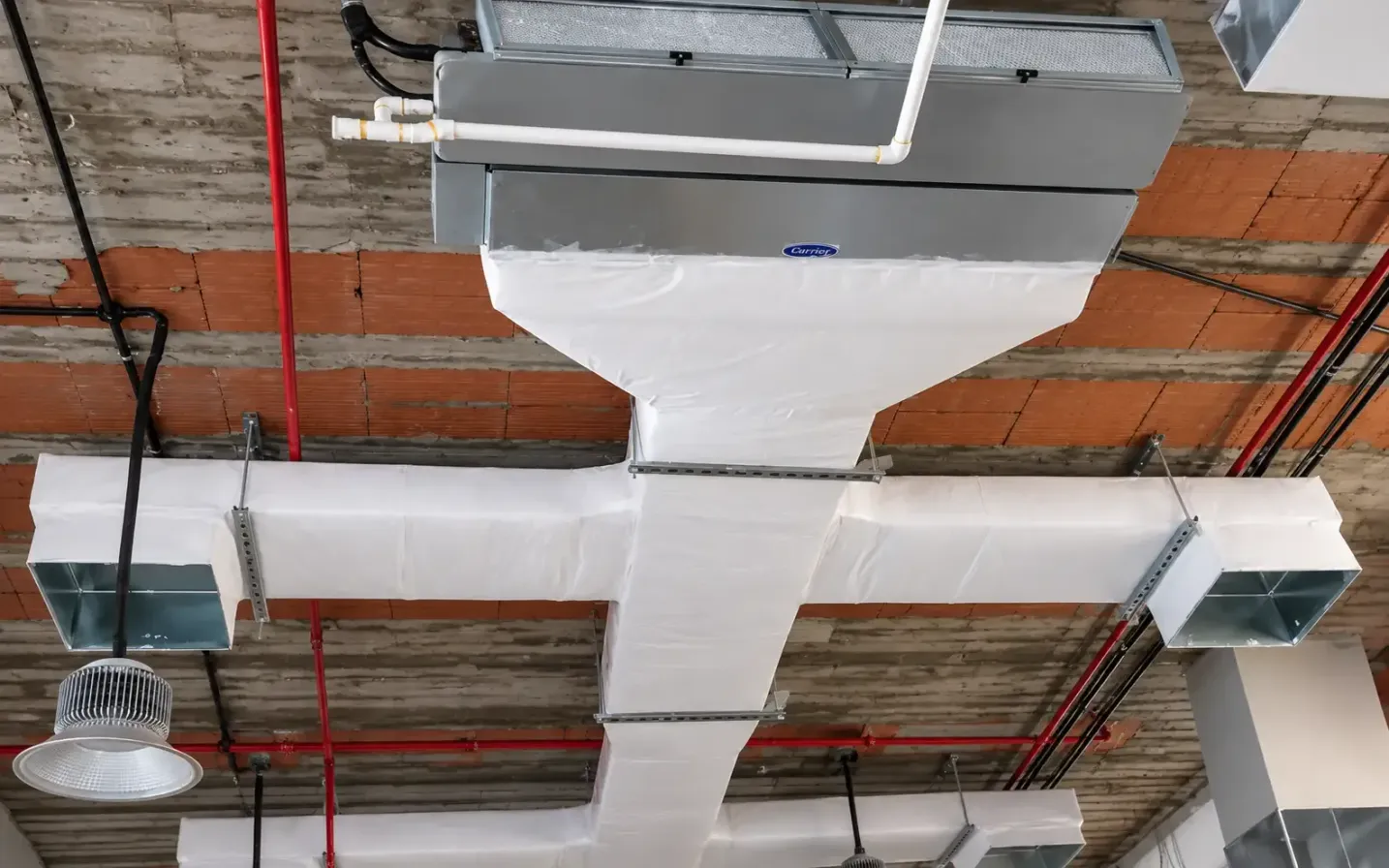

02Air duct insulation

Thermal and acoustic insulation

Duct insulation can use fibreglass at a density of 24 kg/m³, with suitable facing and protection. External protective layers can be provided for heat, moisture and sun exposure. Plenum boxes can use 9 mm rubber acoustic insulation to help limit vibration and noise, according to the project specification.

03Duct sealing and air leakage control

Sealed joints for an efficient air-distribution network

Joints and interfaces are sealed with suitable products such as silicone and specialist Foster materials. Flexible connections are used where needed to help absorb vibration and limit air leakage. Careful joint installation supports the efficiency of the air-distribution network and helps reduce energy losses.

Rooftop central air-conditioning systems
Central air-conditioning units and ductwork on a project

04Copper piping installation

Piping connections for central and concealed air conditioning

We install copper piping for central air-conditioning and concealed units using Muller piping, with pipe lengths based on actual site measurements. Each pipe is insulated separately with AeroFlex insulation to help limit heat transfer and condensation and maintain system efficiency.

05Electrical connections

Organised wiring and protection

Installation includes the specified wires and cables routed through PVC conduit, with flexible protection at bends where needed. Connections follow the project requirements and engineering drawings, with attention to safe, reliable operation.

06Integrated air-conditioning solutions for projects

Coordinating design, fabrication and installation

The service covers residential, commercial and industrial air-conditioning projects, including system design, duct fabrication and installation, copper piping, concealed ducted split units and packaged air-conditioning units. The installation is coordinated around the site and building use to provide suitable air distribution and operating efficiency. For ongoing equipment support, see our air-conditioning maintenance service.

Rooftop central air-conditioning equipment
Rooftop central air-conditioning systems

07Technical specifications

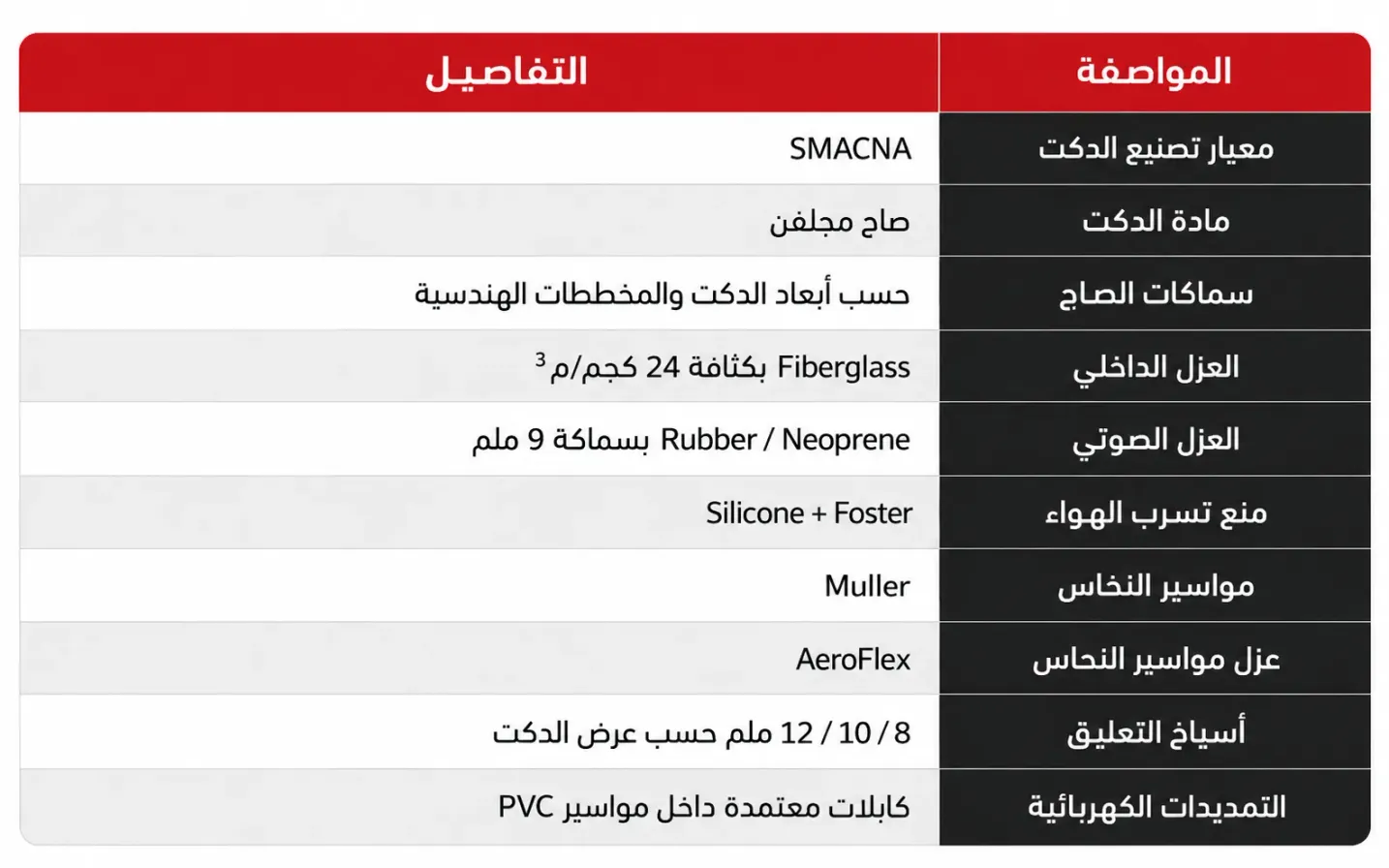

Central air-conditioning technical specifications
Central air-conditioning technical specifications

Have a similar project?

Send us the vehicle or the space and the temperature you need, and we will come back with a detailed quote.

All services

Services

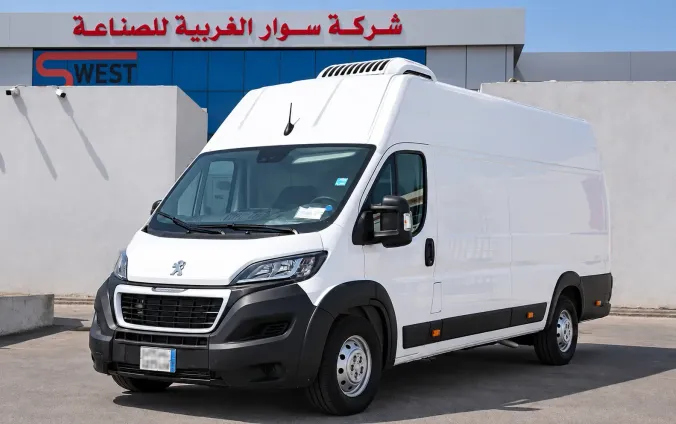

Refrigerated van
