Vehicle Insulation, Refrigeration and Freezing
Vehicle insulation and refrigerated transport fit-outs, combining suitable thermal insulation, refrigeration systems and internal fittings for the goods carried.

SWEST provides vehicle insulation and refrigerated or frozen transport fit-outs, from thermal insulation and cargo-compartment preparation to refrigeration-unit installation and internal fittings. Insulation materials and vehicle-specific designs help limit heat transfer and support stable cargo temperatures under the intended operating conditions. The service covers vehicles carrying food, frozen goods, medicines and other temperature-sensitive products, with fittings adapted to the business and daily operation.
01Insulating vehicles for refrigerated transport
Thermal insulation matched to the required temperature
Vehicle preparation starts with an insulation system suited to the vehicle and its intended use. Effective insulation helps limit heat transfer into the cargo compartment, reducing the thermal load on the refrigeration system and supporting the required transport temperature. Materials and insulation layers are selected around the goods, target temperature and operating conditions. Particular attention is paid to joints and interfaces to limit cold loss. Our refrigerated vehicle conversion guide explains the information to prepare before requesting a fit-out quotation.

02Thermal insulation materials for vehicle bodies
Polyurethane insulation
Vehicle fit-outs can use high-performance insulation materials including polyurethane, selected to help limit heat transfer and support stable temperatures inside the cargo compartment. The walls, roof and floor are insulated to the agreed design. Protective layers and internal finishes help shield the insulation from moisture and external exposure while maintaining body durability. The insulation and refrigeration unit are considered together to support operating efficiency and protect temperature-sensitive products.

03Walls, roof and floor fit-out
A durable compartment with practical finishes

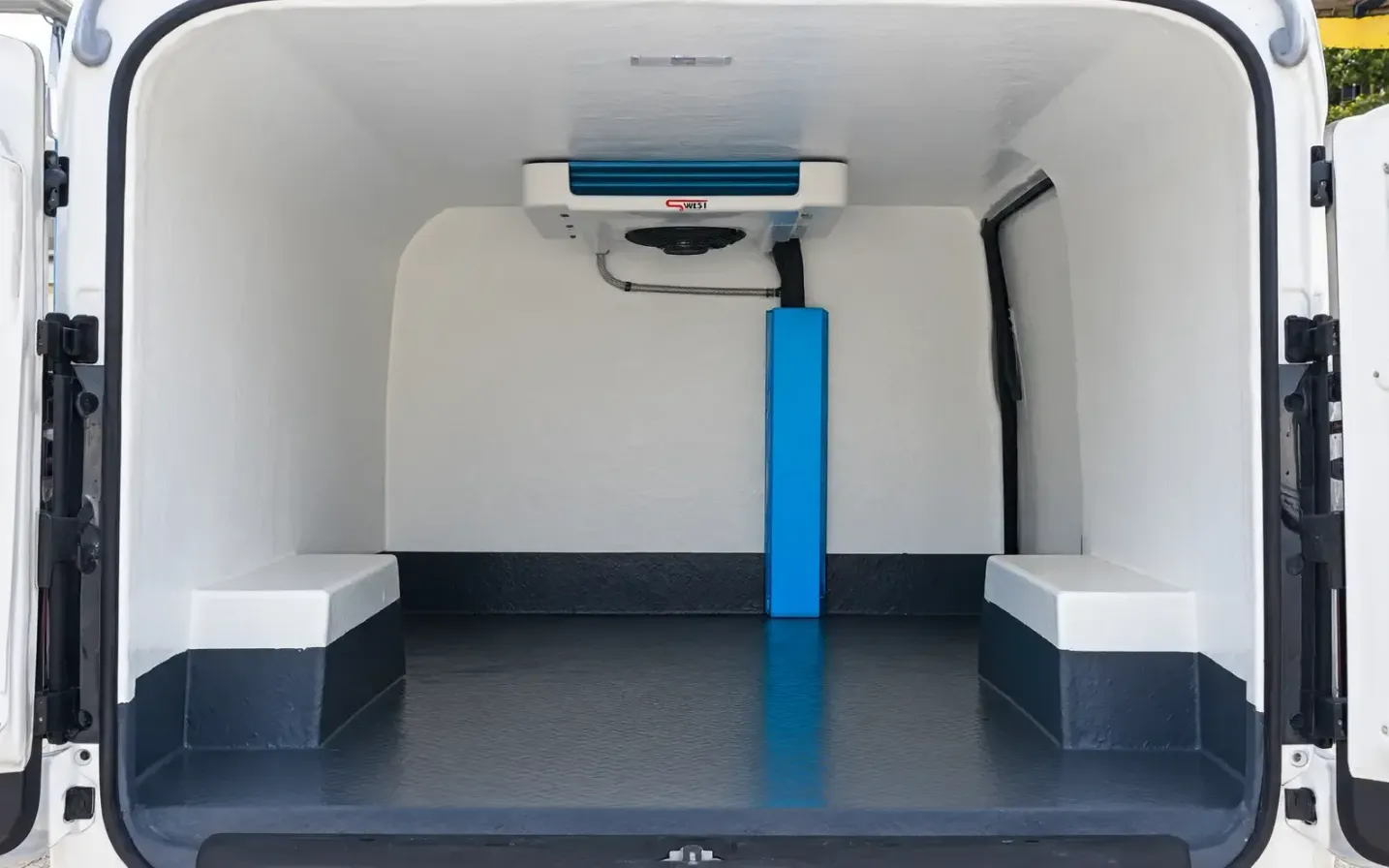

The cargo compartment is fitted with materials and finishes suited to daily use, durability, cleaning and thermal-insulation performance. The work includes insulating the walls, roof and floor and installing internal finishes suited to the products and loading operations. Hard-wearing, slip-resistant floor options can be specified to provide a practical working surface inside the vehicle.

04Insulated doors and body sealing
Limiting air leakage at doors and joints

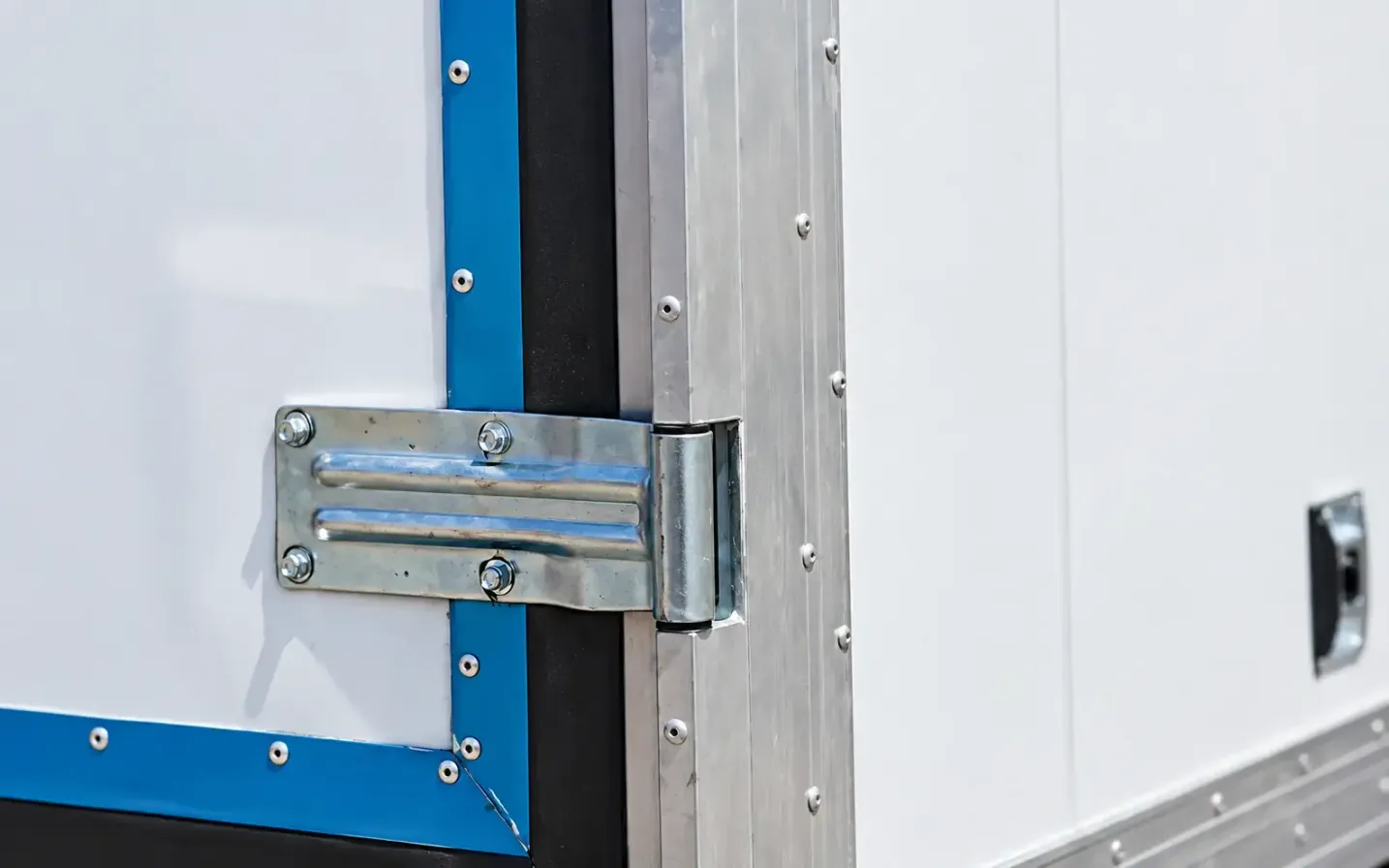

Rear and side doors are insulated according to the design and access requirements. Sealing systems and rubber gaskets help reduce air leakage and cold loss. Door closure and joint sealing are important parts of the body insulation system, particularly where loading and unloading require frequent opening.

05Vehicle refrigeration systems
Selecting a unit for the vehicle and its operation

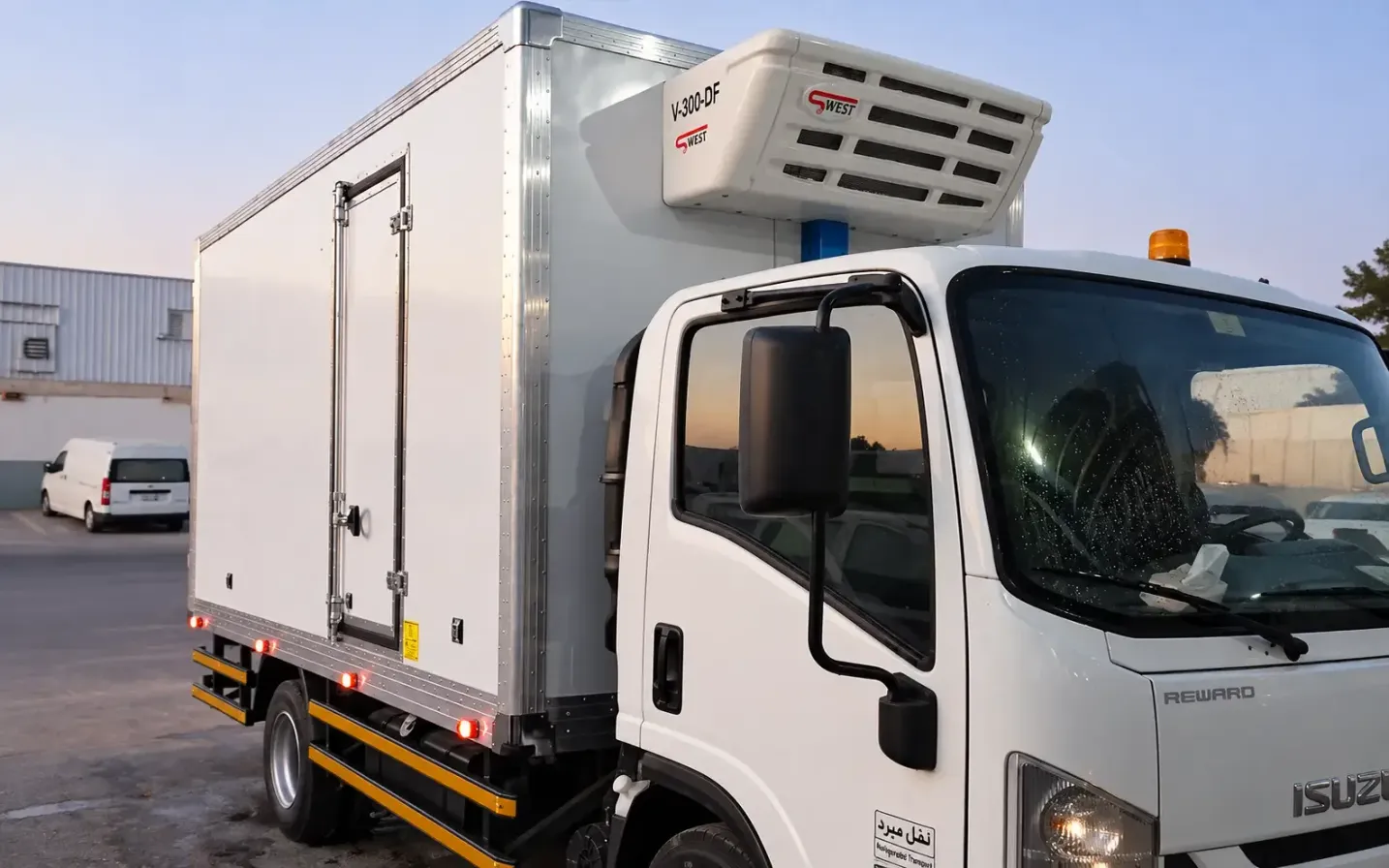

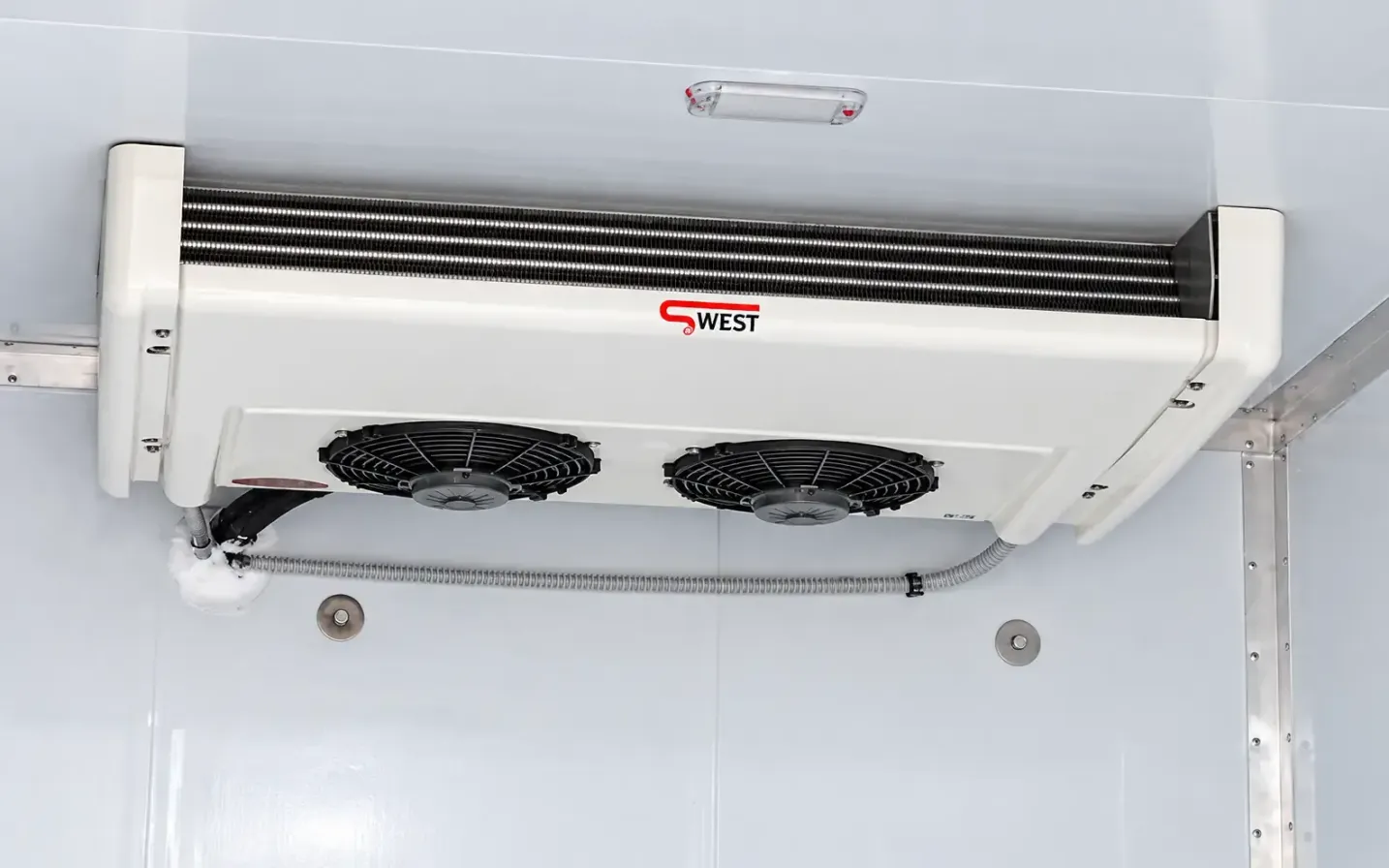

We supply and install vehicle refrigeration systems selected around cargo-compartment volume, vehicle type, required temperature and the goods carried. Operating options include vehicle-compressor-driven systems, systems with mains operation while parked, and independent systems for larger vehicles and trucks. Published model information is available for units such as the V-300-DE and SD-600E. The final selection considers the insulation and refrigeration unit as one system to support stable transport temperatures.

06Internal fittings and vehicle accessories
Preparing the compartment for daily use

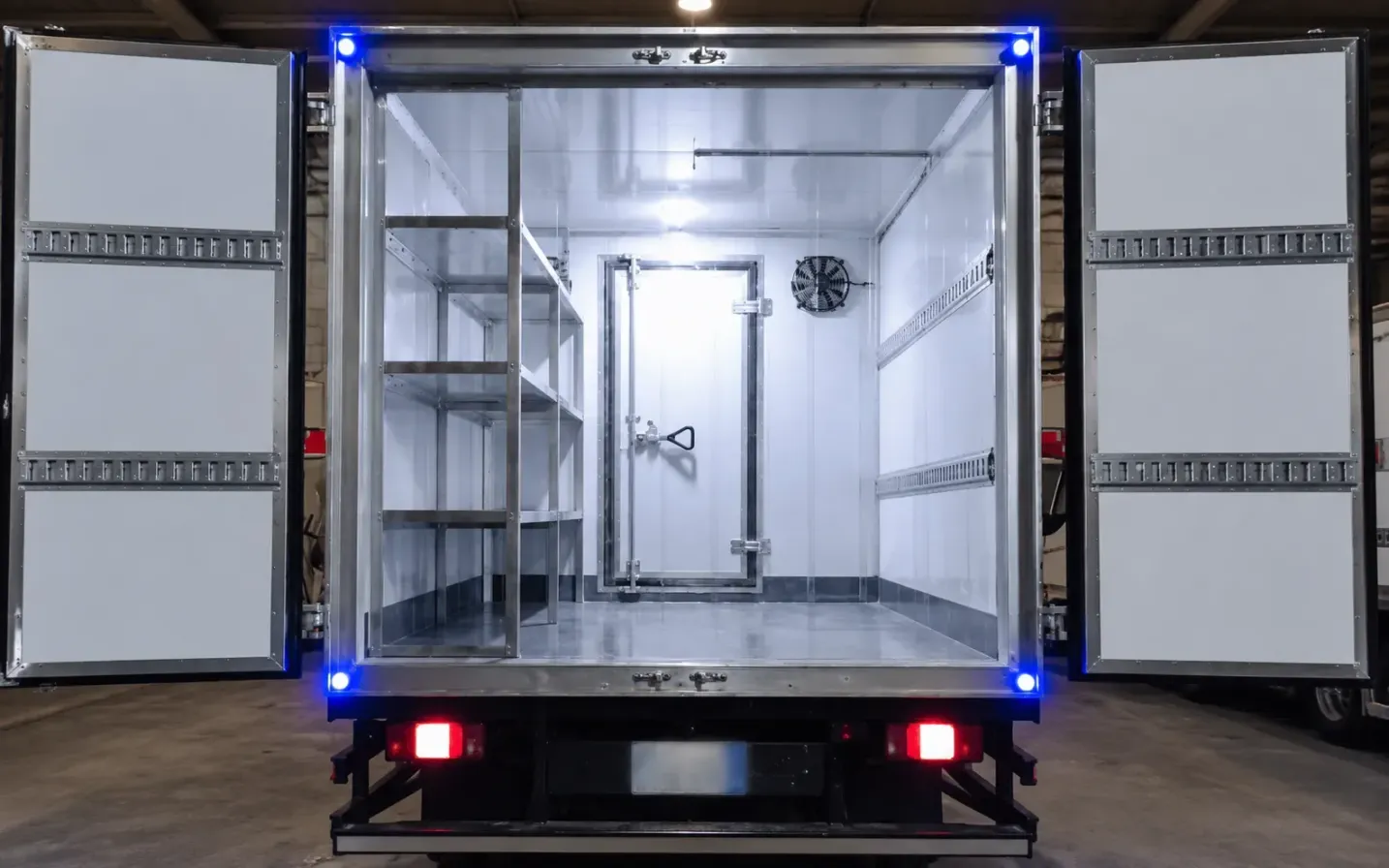

Internal fittings can make the cargo compartment more practical, help protect the goods and improve day-to-day handling. Available fittings include interior LED lighting, PVC curtains to help limit cold loss at open doors, shelving and supports, external protection, rear bumpers, mudguards and vehicle-specific additions. Door hardware options include locks, hinges and handles, selected to match the body and its operating requirements.

07An integrated chilled and frozen transport fit-out
From insulation to operation
SWEST brings thermal insulation, cargo-compartment preparation, refrigeration-unit installation and internal or external fittings into one fit-out scope. Design and installation consider the business and goods carried, whether fresh food, frozen products, medicines or other temperature-sensitive goods. Matching the insulation and refrigeration system to the operating need supports cold-chain continuity during transport. For ongoing support, see our refrigeration maintenance and spare parts service.

Have a similar project?
Send us the vehicle or the space and the temperature you need, and we will come back with a detailed quote.
