Cold Rooms and Freezer Rooms
Design, fabrication and installation of cold and freezer rooms with polyurethane insulation panels and refrigeration systems selected for room size, target temperature and stored products.

SWEST designs, fabricates and installs cold rooms and freezer rooms for commercial and industrial use. The scope can cover insulation panels, refrigeration equipment, controls and commissioning. The room envelope uses rigid polyurethane insulation panels faced with coated steel sheets, with thicknesses and specifications selected for the project. Condensing units, evaporators, compressors and controls are selected around room size, target temperature and operating requirements.
01Cold-room and freezer-room design and fabrication
A room designed around the project
Rooms are designed around the available space, product volume, target temperature and operating pattern. The insulation and refrigeration system are selected together to achieve the required storage conditions. The work can include insulated-panel fabrication and installation, insulated doors, refrigeration equipment and the electrical control system within one coordinated scope.

02Thermal insulation panels
Rigid polyurethane insulation
The rooms use rigid polyurethane foam panels faced with pre-painted, heat-treated steel sheets to provide insulation and a durable enclosure. The base specification referenced on this page lists steel facings of 0.4, 0.5 or 0.6 mm and an insulation thickness of 50 mm. Panel thickness and the full enclosure specification are confirmed for the project's operating temperature and requirements. See the insulated sandwich panel product page and our sandwich panel specification guide for the panel options and quotation considerations.

03Insulation performance and operating temperatures
Specifying the room for the required temperature
Insulation and refrigeration specifications are set around the required temperature range and intended use. Previously published specifications for this category reference an operating range from -4°C to +15°C. The components and temperature duty are confirmed for each project. Matching the insulation and refrigeration system helps limit the thermal load and maintain the required storage temperature.

04Refrigeration systems
Automatic operation at the selected temperature

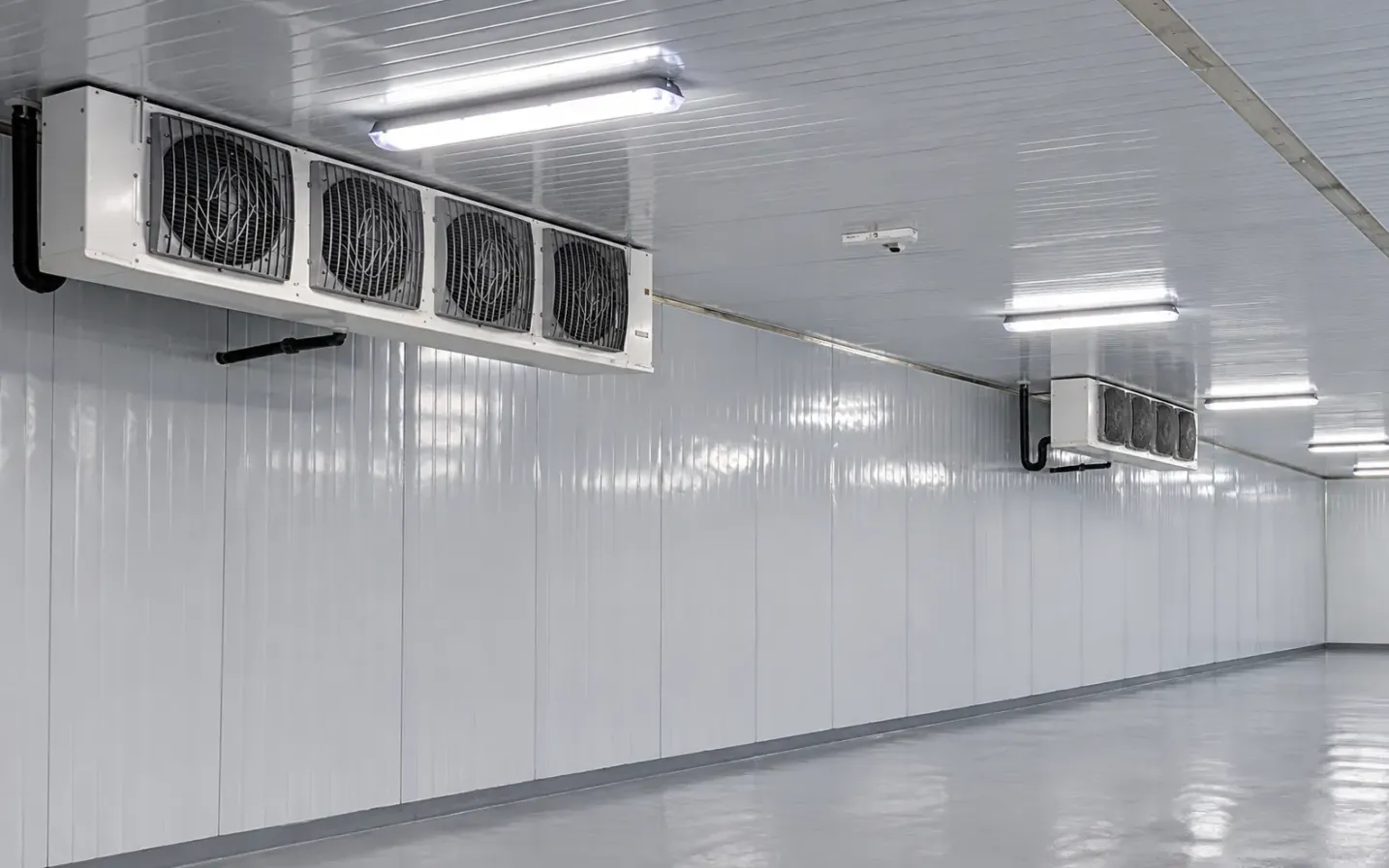

Insulation in the walls, roof and floor is a key part of cold-room and freezer-room performance. Panels, joints and interfaces are installed to help limit heat transfer and cold loss. Refrigeration units operate automatically around the selected temperature, with compressor operation controlled according to the room's cooling demand. The system can include evaporators, compressors, expansion valves, solenoid valves and other circuit components. The SWEST 5 hp outdoor condensing unit is one catalogue example; the required capacity and equipment configuration are determined for the room and its operating load.

05Evaporators and compressors
Refrigeration components selected as a system

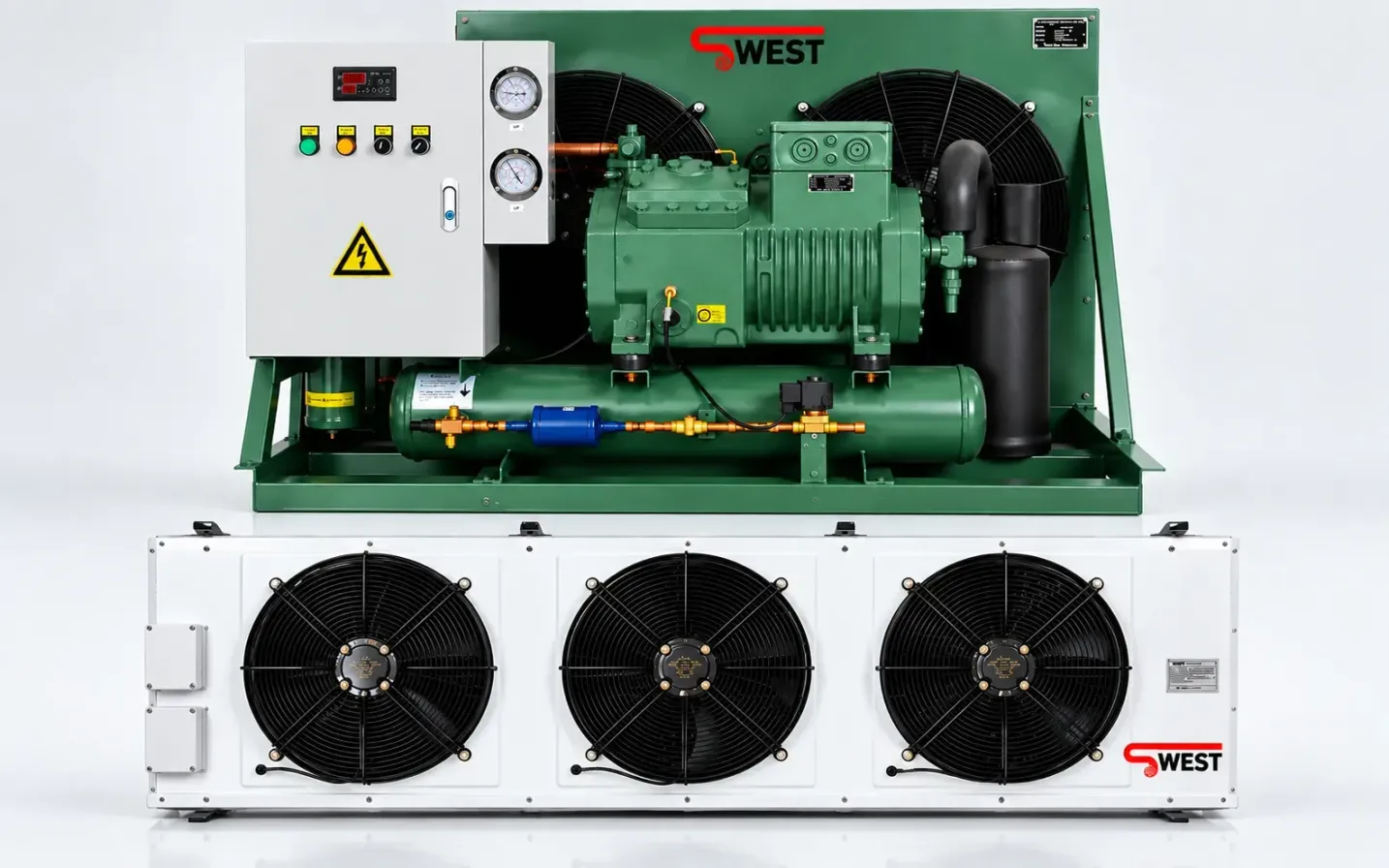

The refrigeration circuit can include evaporators, a solenoid valve and an expansion valve. Compressor-side components can include a liquid receiver, service valves, liquid-line filter drier and sight glass. These components are selected and installed to suit the room design and operating requirements. Published examples include the DJ-70 evaporator and SWEST 5 hp refrigeration compressor, whose specifications can be reviewed during equipment selection.
06Electrical control panels
Operating and protecting the refrigeration system

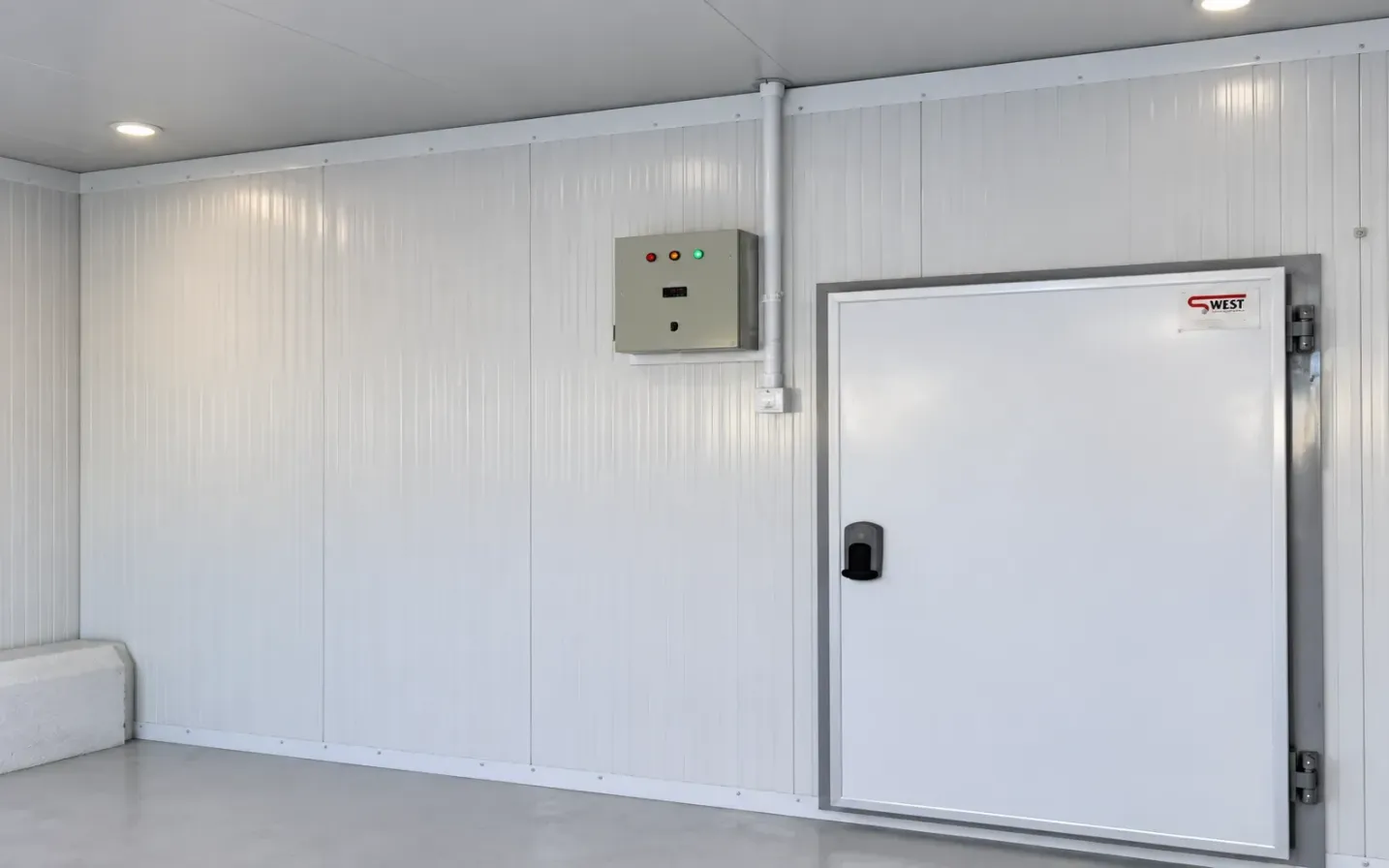

Electrical control panels provide the switching and protection needed to operate the room's refrigeration equipment. Depending on the project specification, the panel can include a main breaker, undervoltage and phase-failure protection, branch-circuit breakers, lighting breakers, compressor and evaporator or fan contactors, a defrost timer, on/off switches and operating or fault indicator lamps. The controls and protective devices are selected around the equipment and project requirements.

07Insulated cold-room and freezer-room doors
Hinged and sliding access options

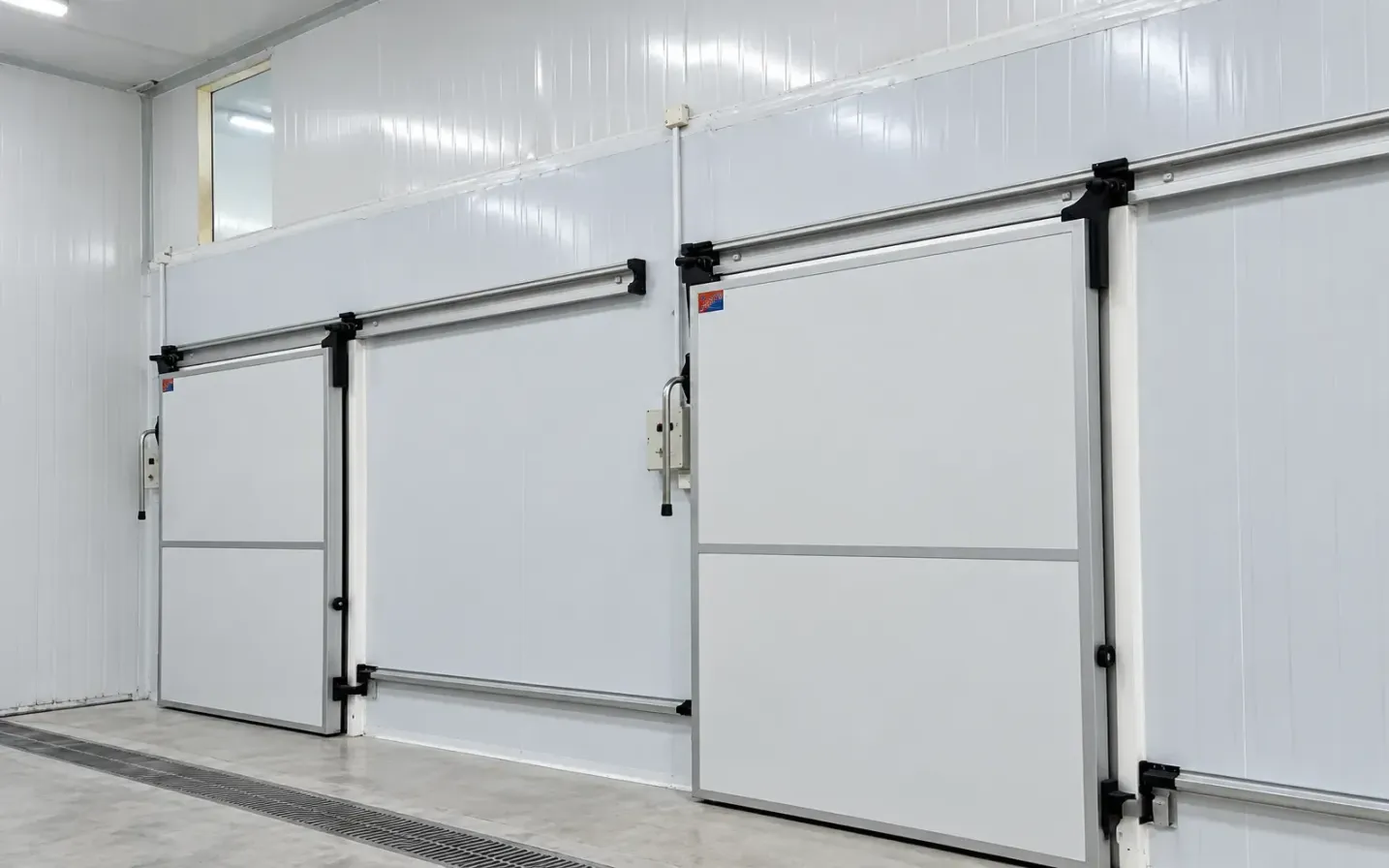

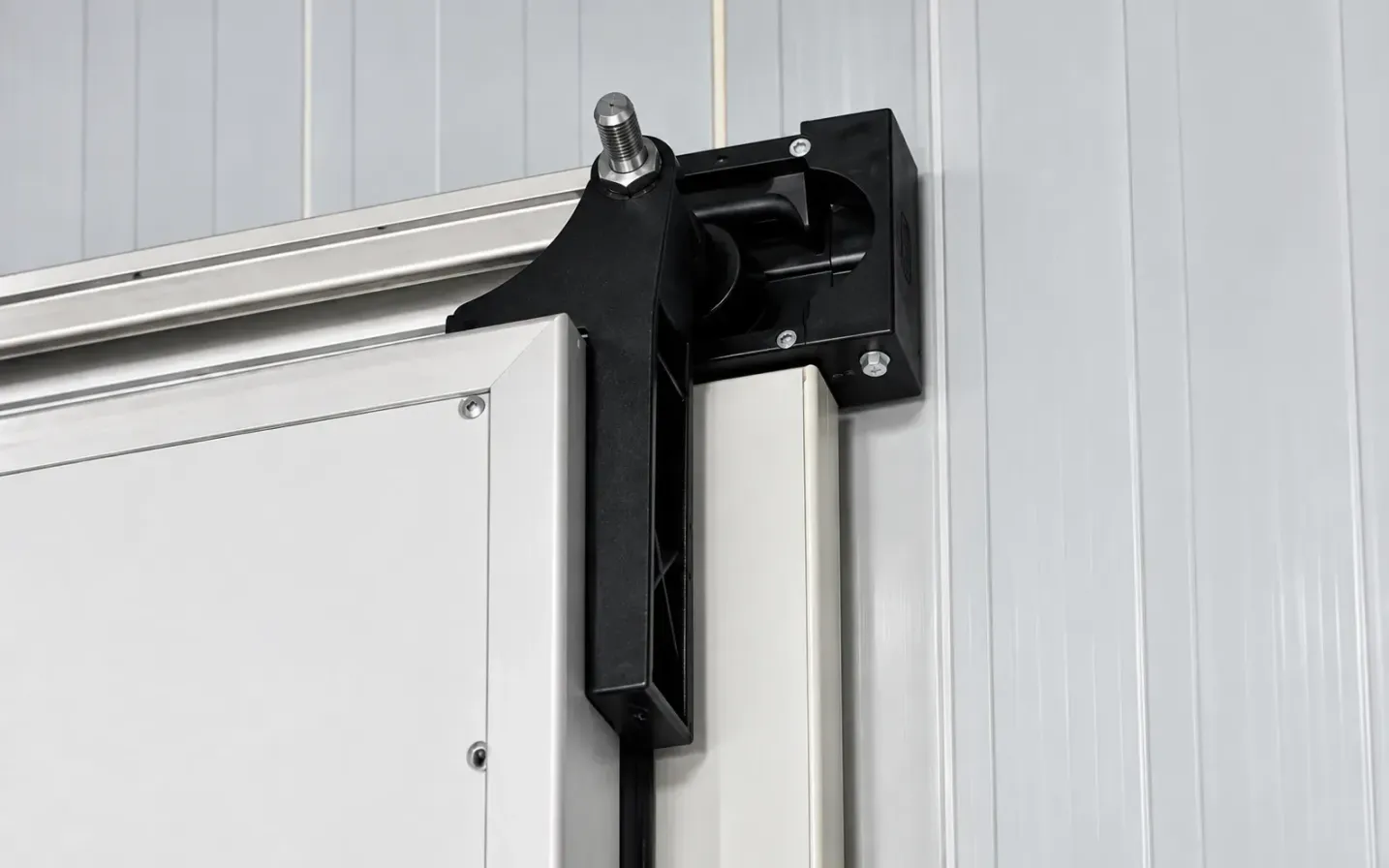

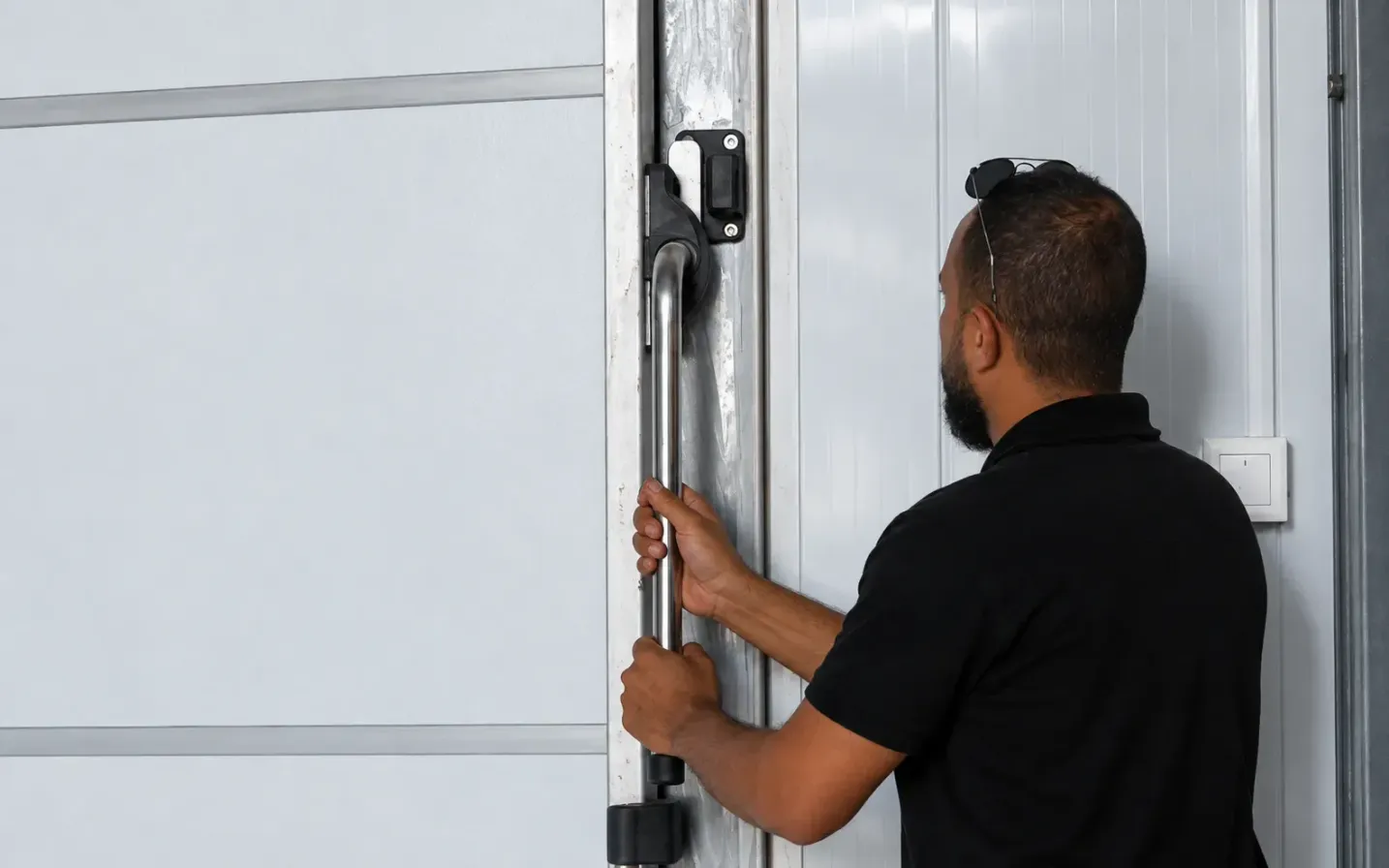

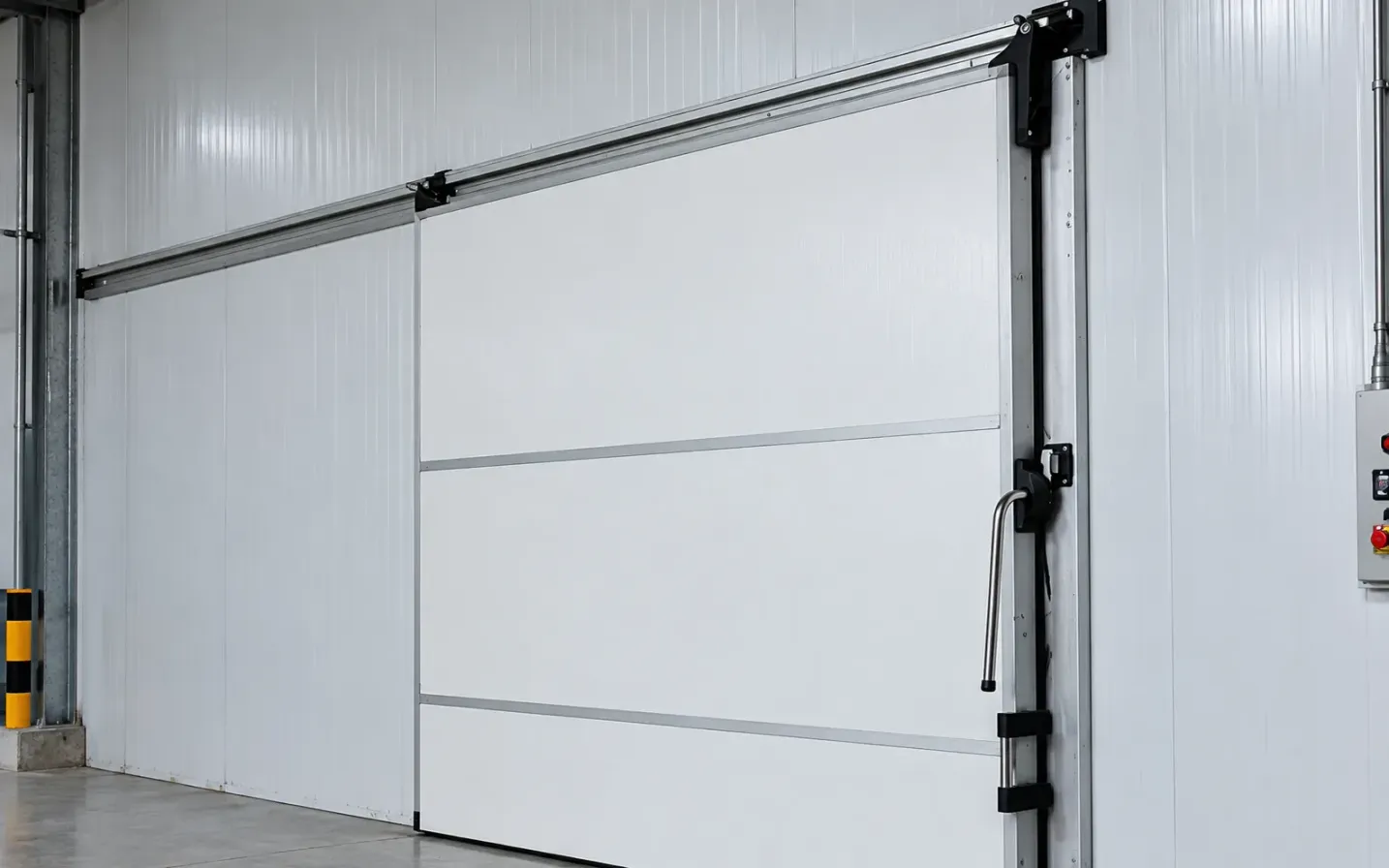

Insulated doors can be supplied in hinged or sliding configurations to suit the room design and available operating space. Door number and dimensions are set around access needs and the movement of people and goods. The catalogue includes insulated hinged doors and insulated sliding doors. Insulation and closure details are considered to help limit cold loss.

08Lighting and temperature measurement
Practical monitoring and access

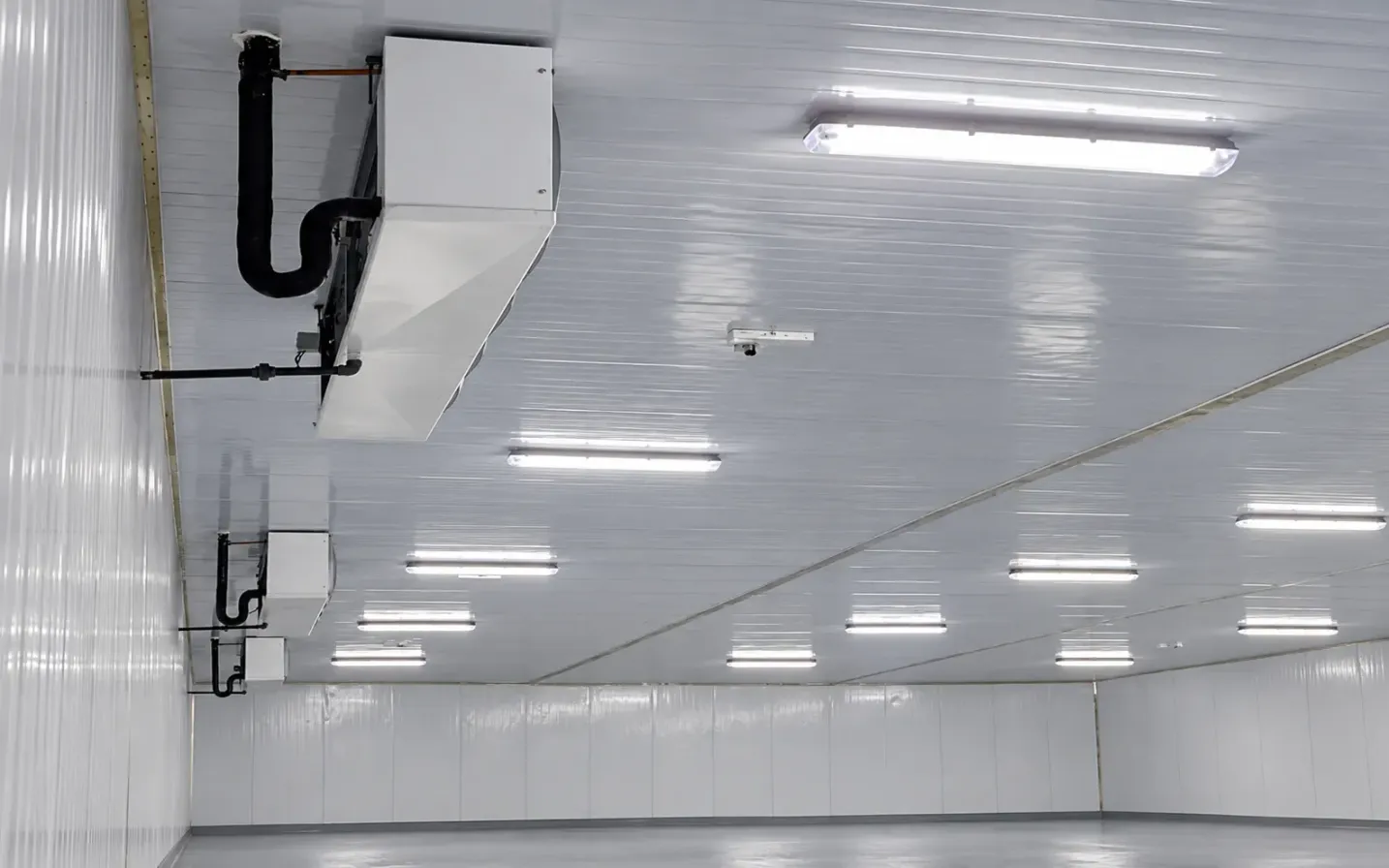

Rooms can be fitted with internal lighting suited to humid environments, with the switch near the door for convenient access during loading and unloading. An external temperature display can be provided with its sensor inside the room, allowing the internal temperature to be read without entering the storage compartment.

09Technical specifications

10Warranty and technical support
Warranty scope and duration
Warranty and technical support are provided according to the project scope and contract. Previously published specifications list a 24-month warranty for equipment and devices, together with up to 5 years for the structure, fabrication and installation against manufacturing and installation defects. Confirm the applicable scope and duration in the project quotation and contract. Our refrigeration maintenance service provides a separate reference for preventive and corrective support.
11Applications
Cold-room and freezer-room applications
Applications include food storage for meat, poultry, fish, vegetables, fruit, dairy products and beverages; logistics and distribution facilities needing chilled or frozen storage; and other temperature-sensitive goods requiring controlled storage conditions. For the wider building and storage facility, see our warehouses and steel hangars service.
